Patriot® Fully Framed Gear Lockers

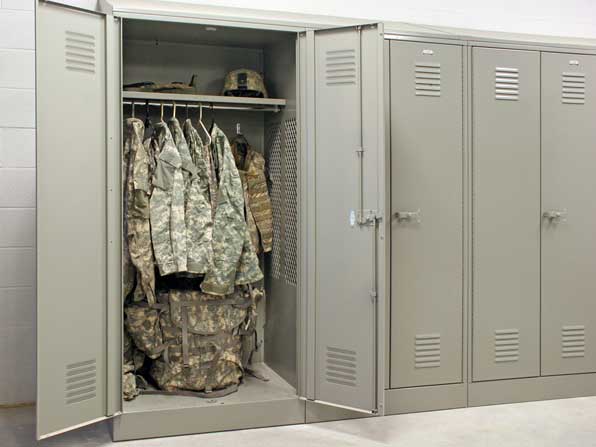

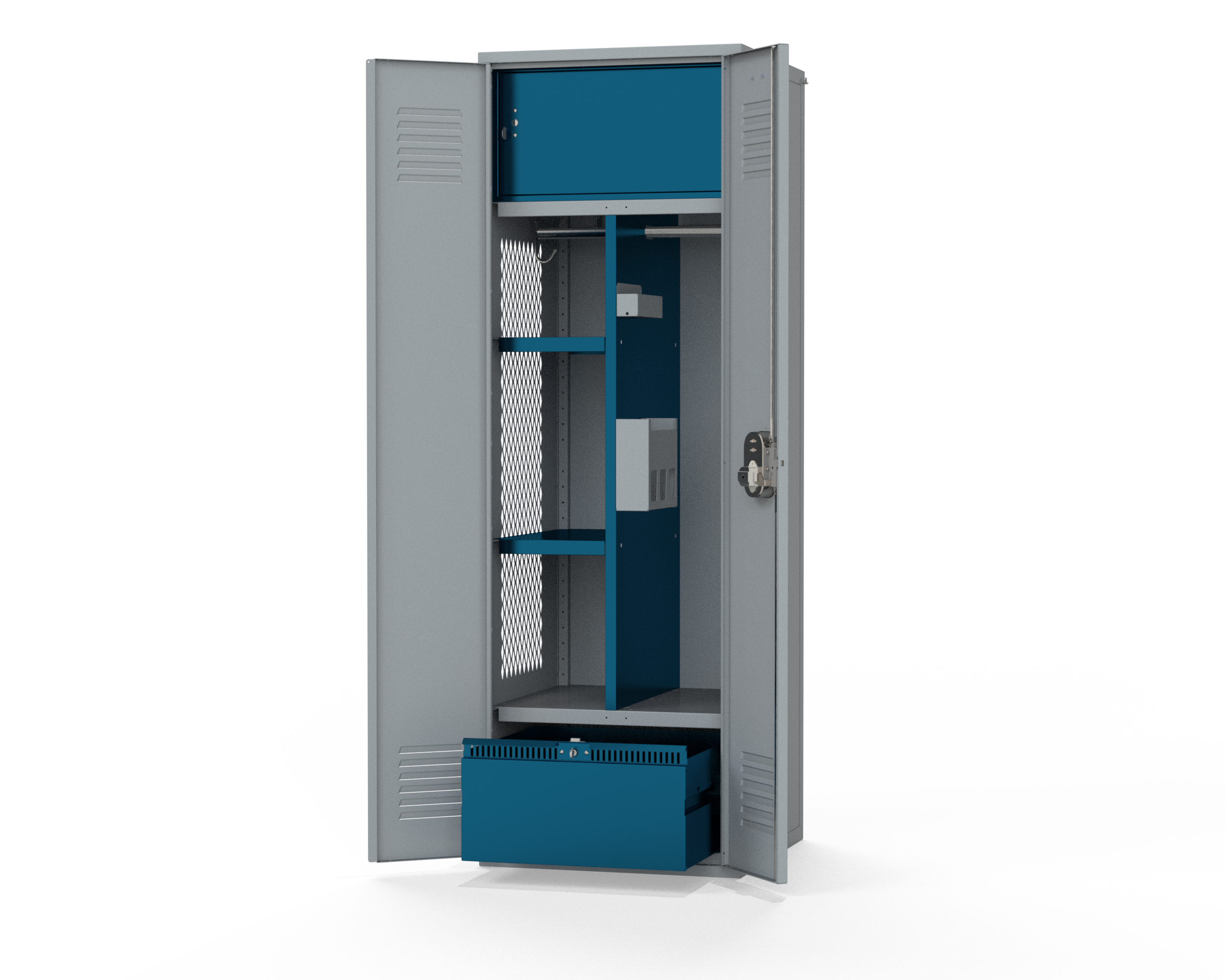

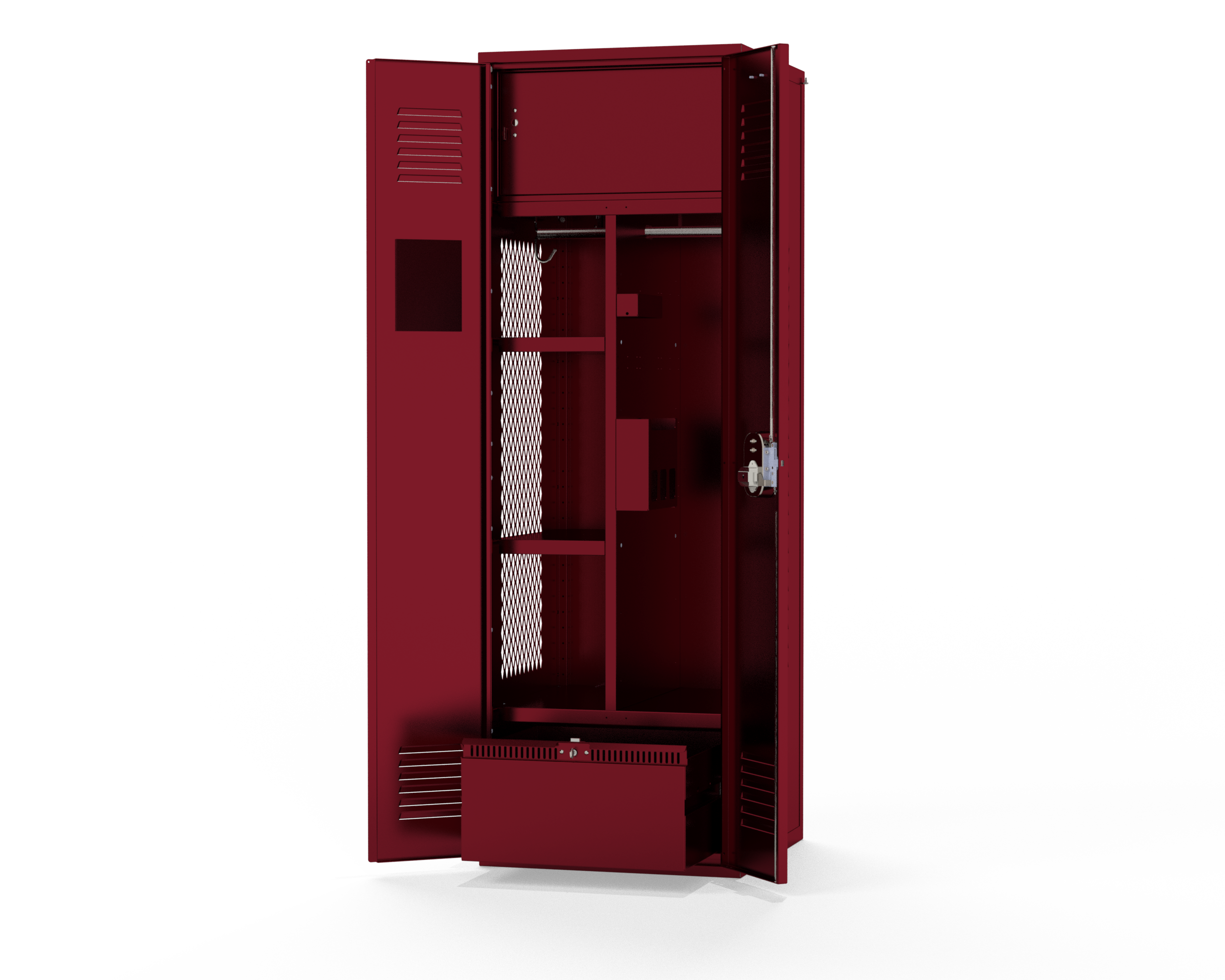

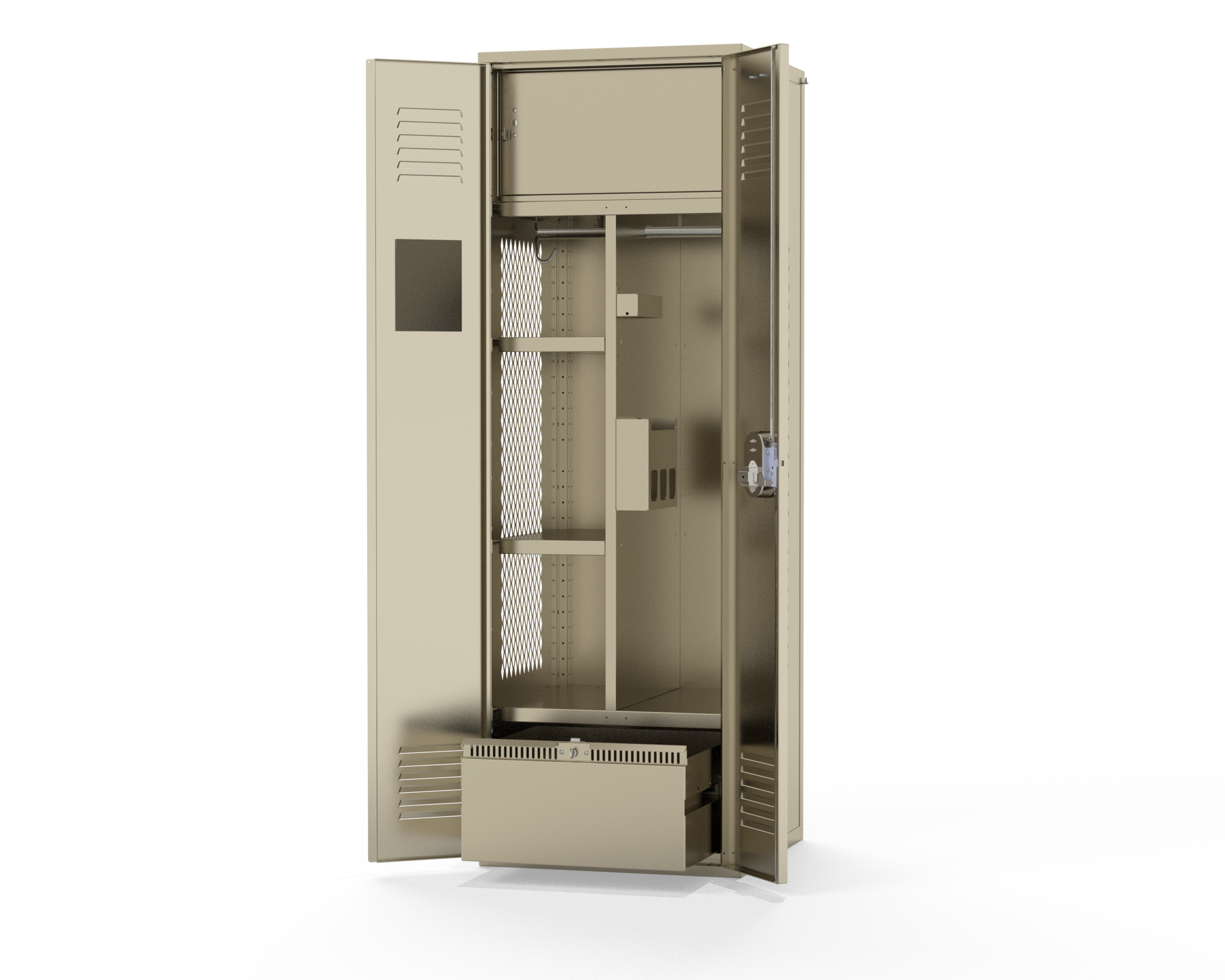

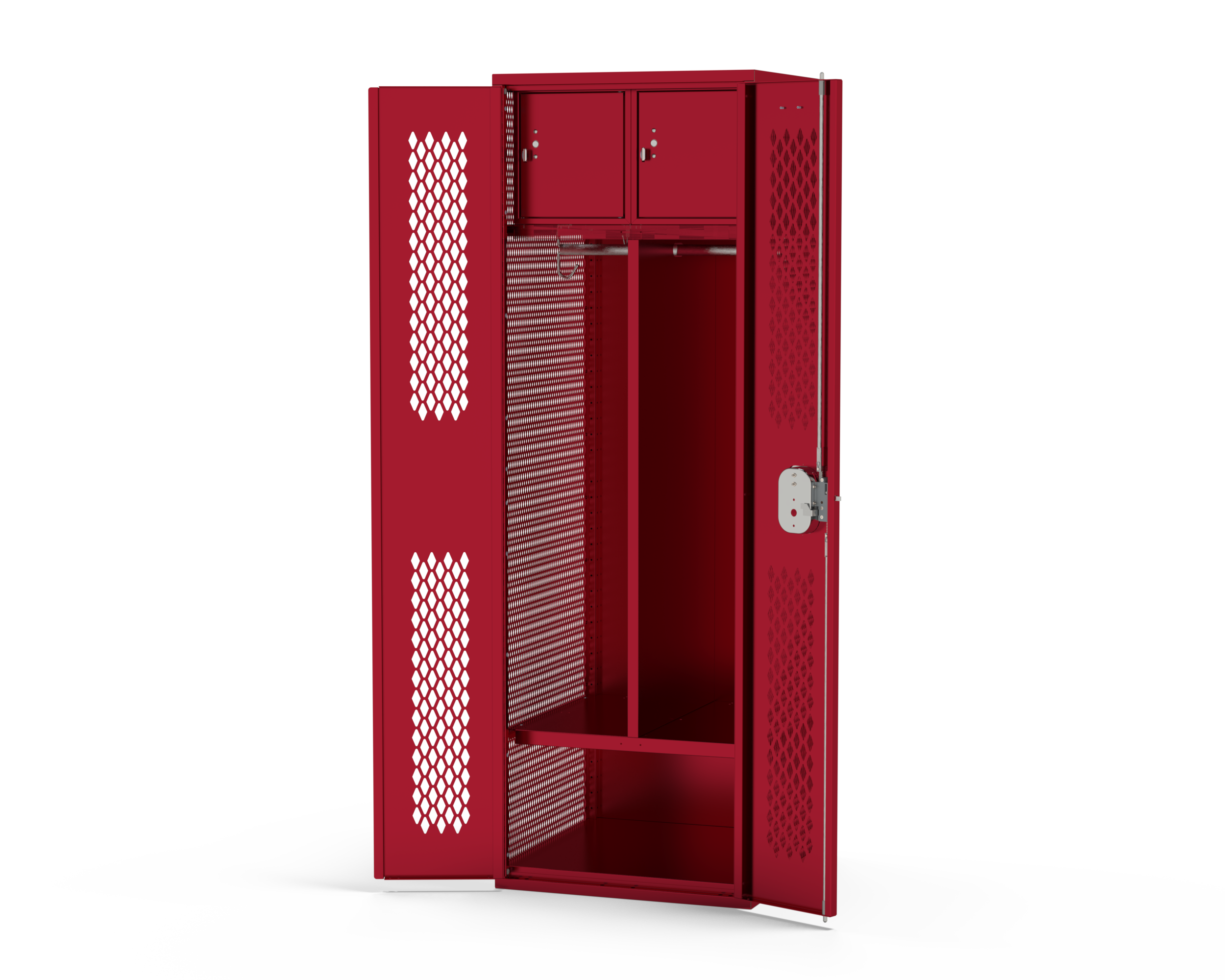

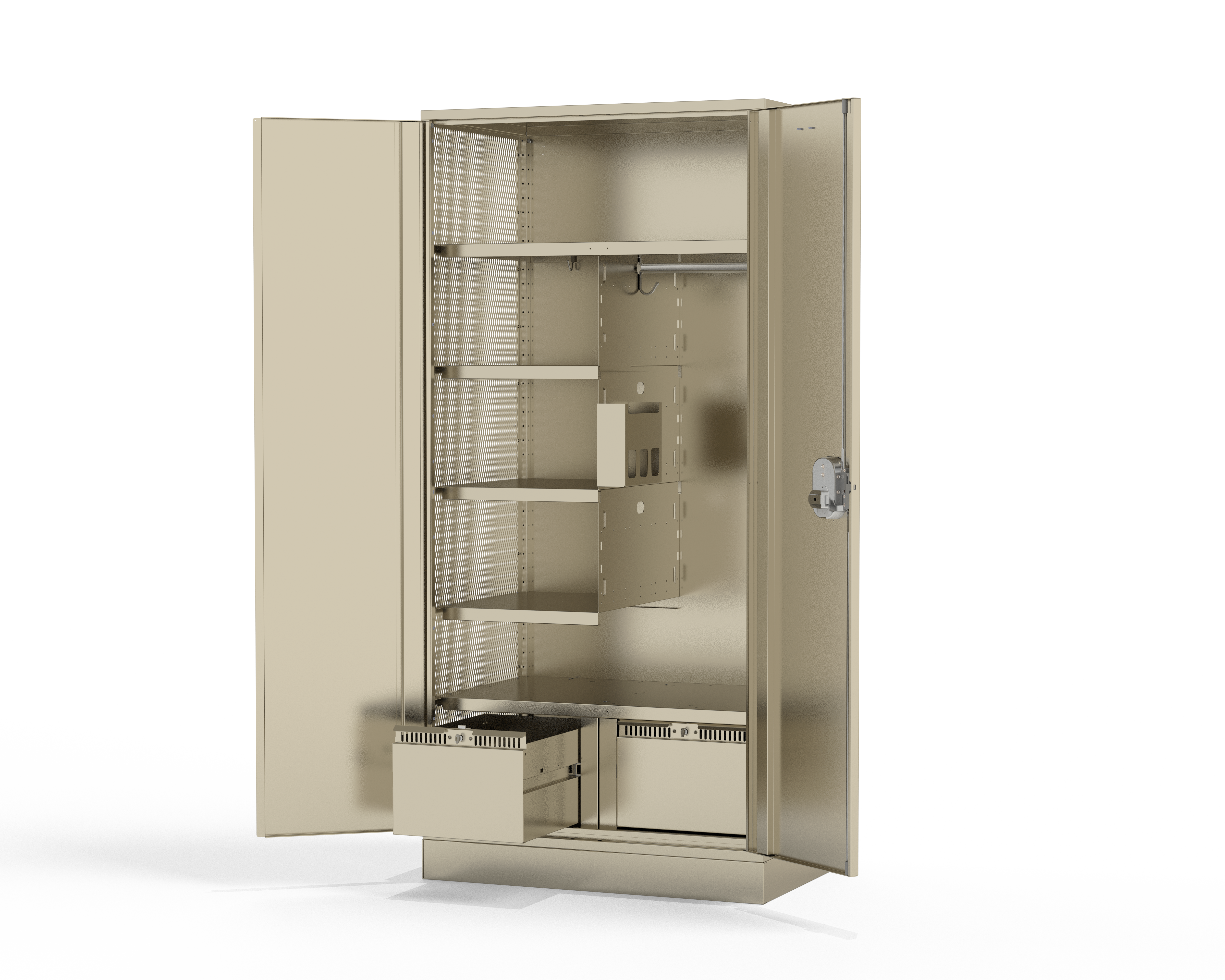

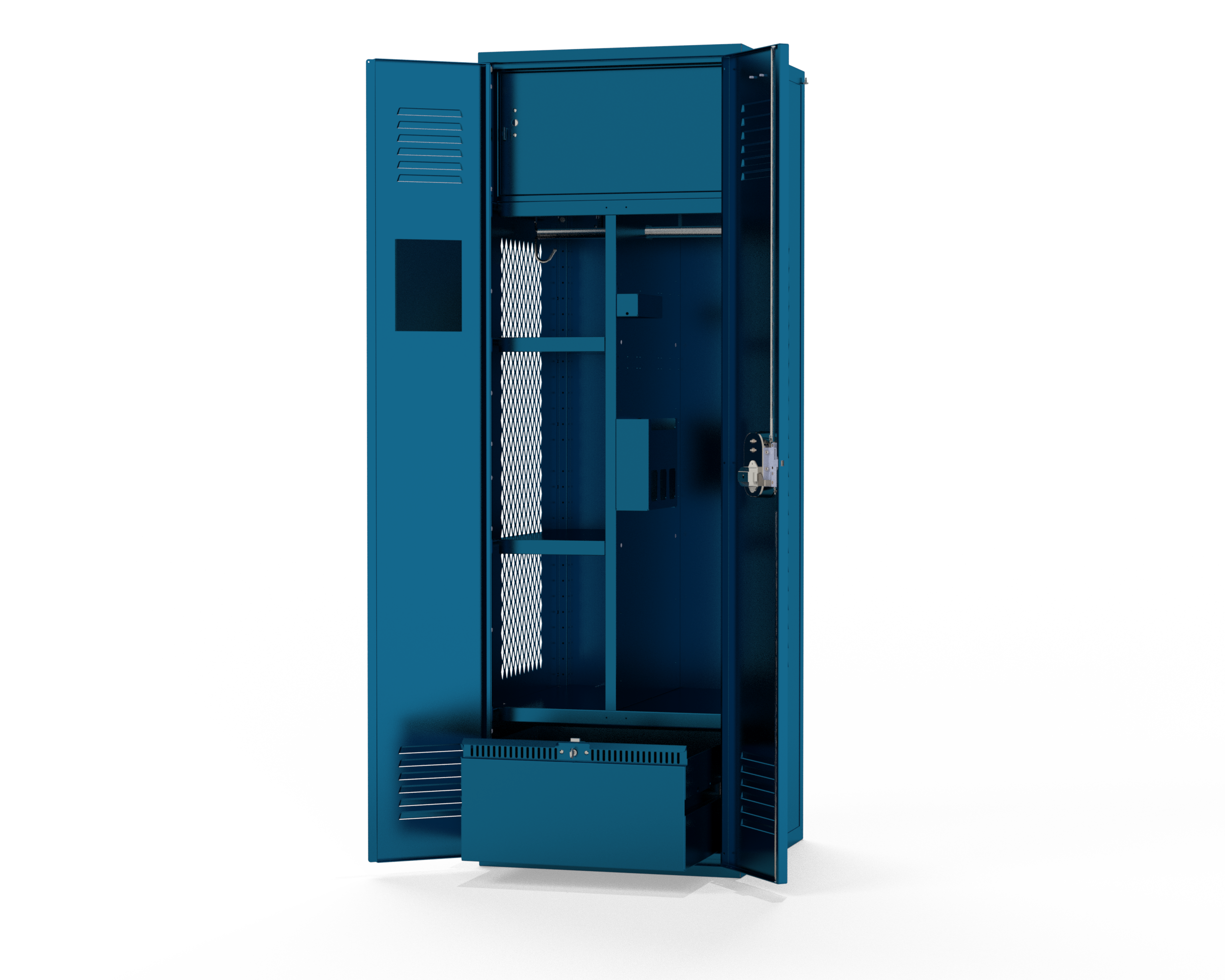

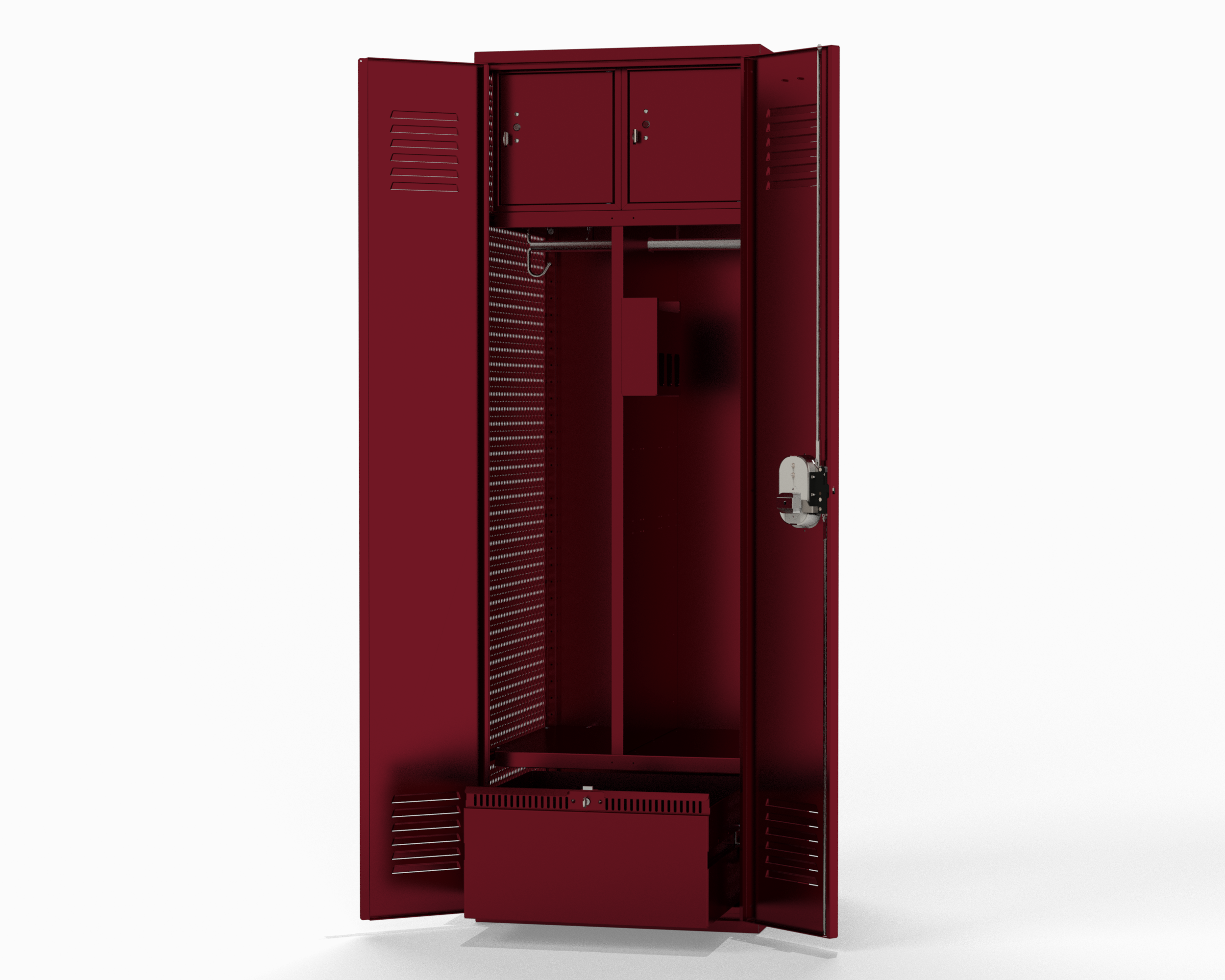

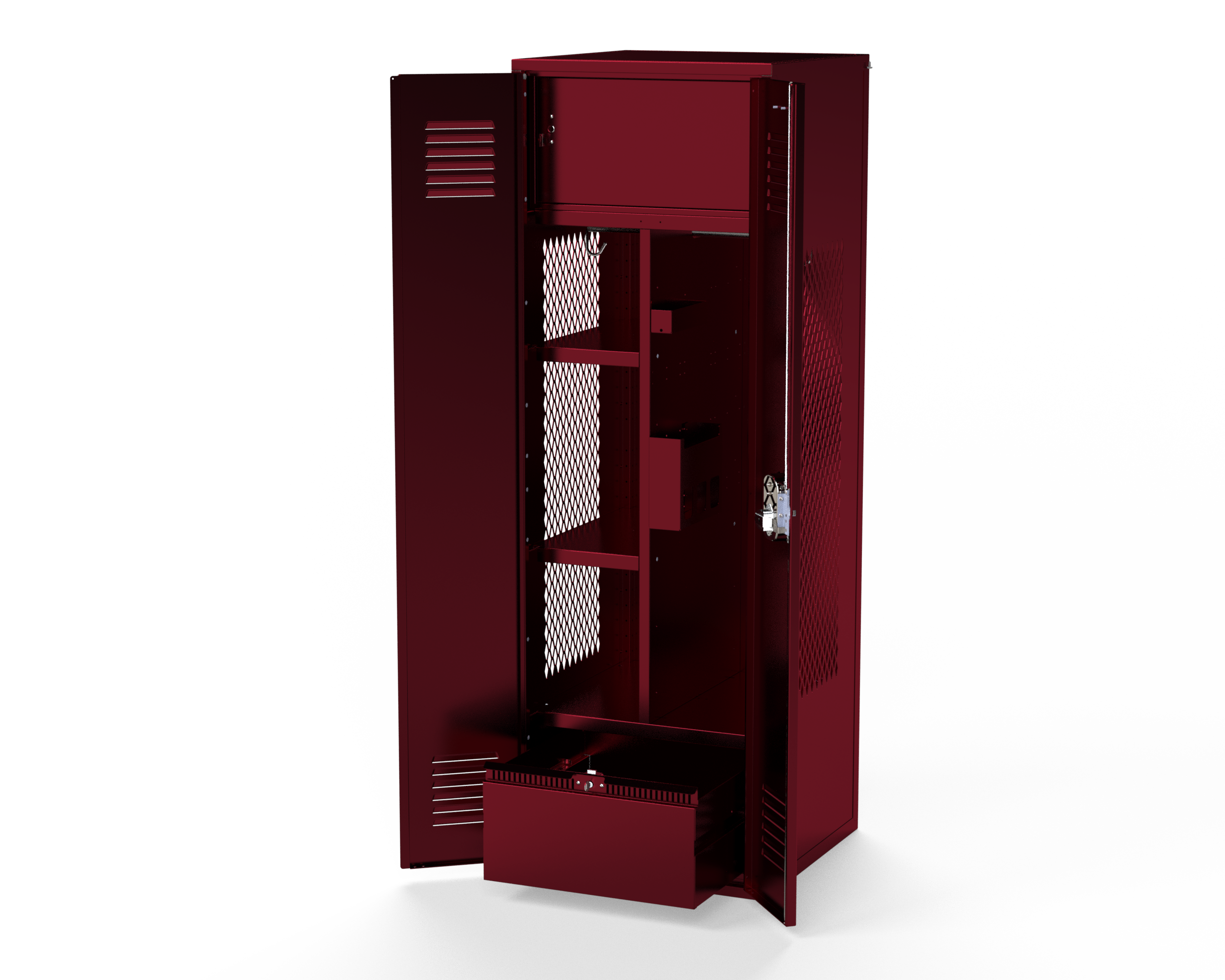

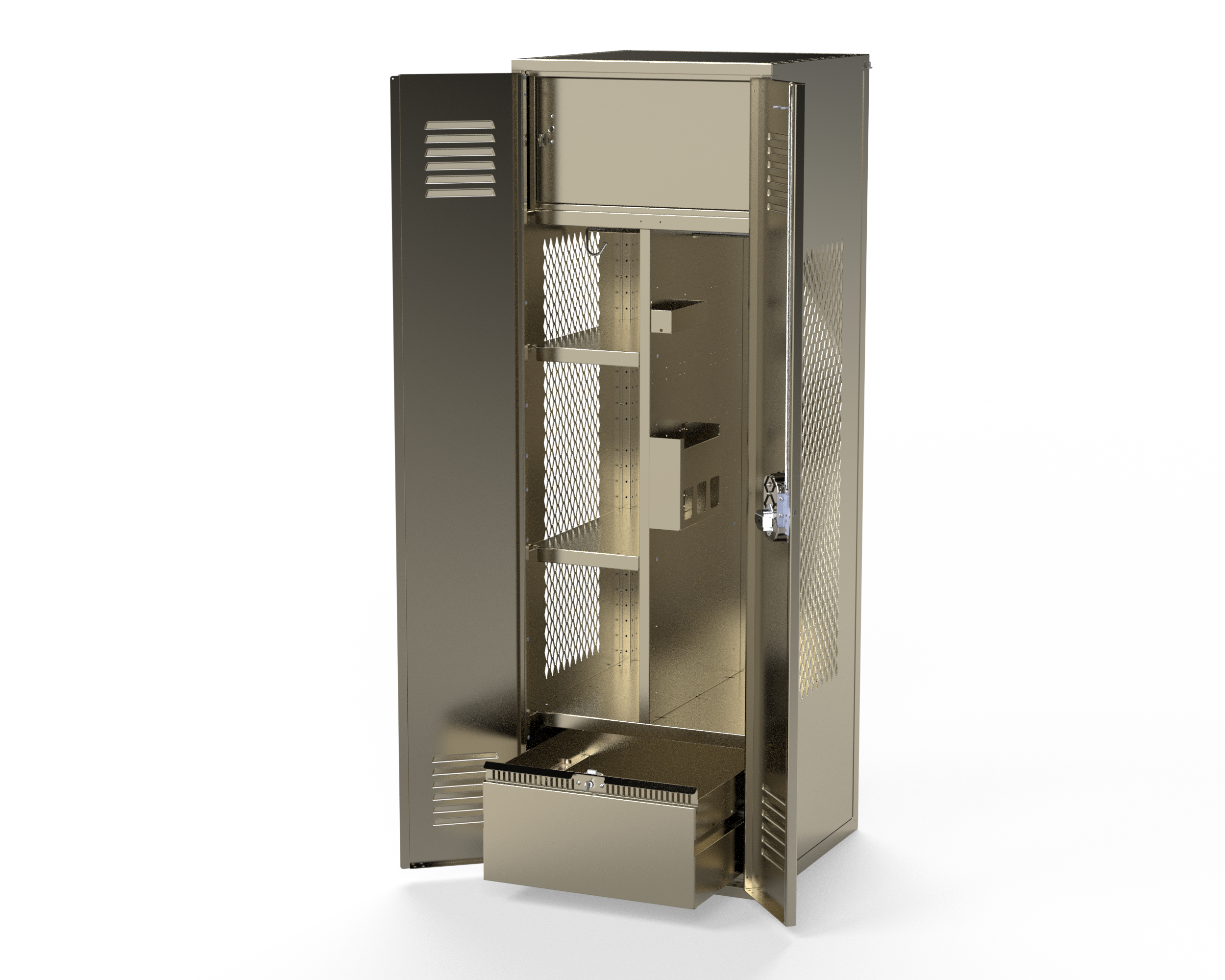

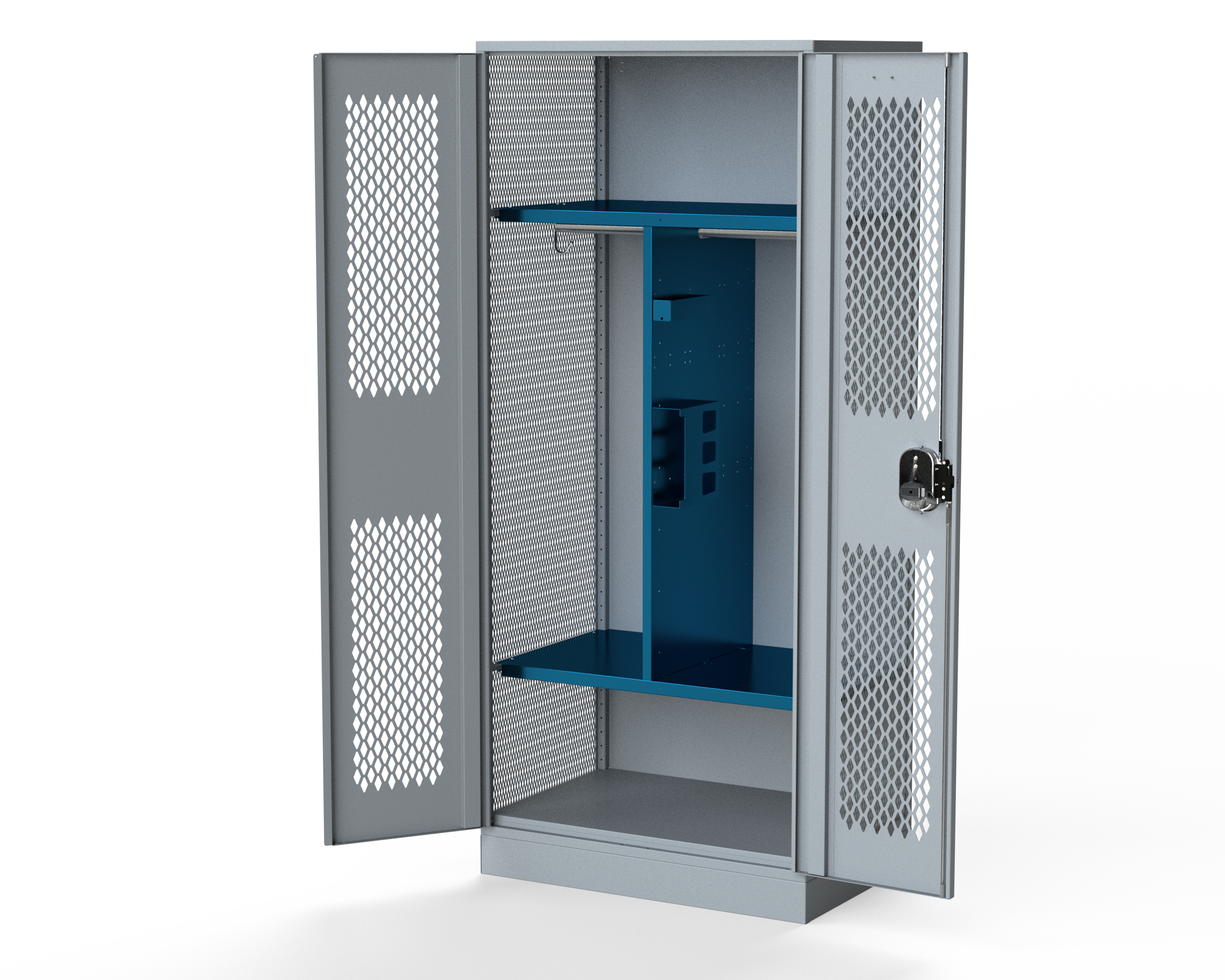

A properly equipped double door Patriot Fully Framed Gear Locker can be the ideal solution for a variety of specialized storage challenges. The ample storage areas at both top and bottom of the 24 - 48 inchwide and 72-inch high locker leaves nearly four feet between the shelves for hanging uniforms and other gear.

  • True fully framed construction offers better rigidity
  • Offered in KD or Welded construction
  • 4 or 6 inch high Channel Base available
  • 72 or 78 inch heights available
  • 18 inch depth available with 18 or 24 widths
  • 24 inch depth available with 18, 24, 30, 36, 42, or 48 inch widths
  • Ultra-Cremone Recessed Handle for a safer, cleaner look and less freight damage
  • High degree of configurability

Please Note: Patriot accessories are designed for attachment on site during locker assembly and installation. On welded Patriot models, only the hat shelf will be factory installed. This is done to optimize paint coverage and facilitate interior configuration changes if needed.

  • 1135
  • 1132
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers
  • Patriot® Fully Framed Gear Lockers

Patriot Fully Framed Gear lockers A properly equipped, double-door Patriot Gear locker can be the ideal solution for a variety of specialized storage challenges.A properly equipped double door Patriot Fully Framed Gear Locker can be the ideal solution for a variety of specialized storage challenges. The ample storage areas at both top and bottom of the 24 - 48 inchwide and 72-inch high locker leaves nearly four feet between the shelves for hanging uniforms and other gear.

  • True fully framed construction offers better rigidity
  • Offered in KD or Welded construction
  • 4 or 6 inch high Channel Base available
  • 72 or 78 inch heights available
  • 18 inch depth available with 18 or 24 widths
  • 24 inch depth available with 18, 24, 30, 36, 42, or 48 inch widths
  • Ultra-Cremone Recessed Handle for a safer, cleaner look and less freight damage
  • High degree of configurability

Additional Patriot Lockers Available:

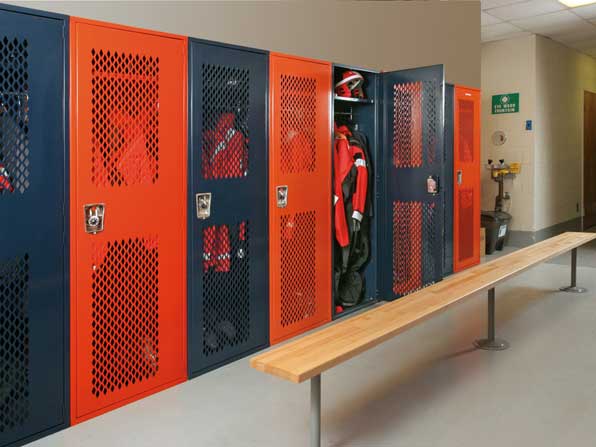

Patriot Fully Framed Turnout Lockers
Patriot Fully Framed Turnout lockers come with open fronts for split-second access to flight or emergency equipment that can be as Spartan or heavily accessorized as duty requires.

Patriot Fully Framed Duty Lockers
Patriot Fully Framed Duty Lockers have an extra deep base with a wood bench built-in on top of extra deep drawers.

Gear and Turnout Knocked Down Build

Heavy Duty Lockers: All locker body components made of cold rolled steel specially formed for added strength and rigidity and to ensure tight joints at fastening points.

Locker Body:  Sides, Bottoms, Tops, and Shelves: 16 gauge steel.

Sides punched for shelf locations on nominal 12 inch centers.

Backs:  Solid 18 gauge steel.

Sides:  16 gauge sheet steel with 3/4 inch (19mm) wide by 1-1/2 inch (38mm) high diamond-shaped perforations. Optional: solid sides without ventilation. Tops and Bottoms: Three sides formed 90 degrees, the front offset formed to be flush with horizontal frame member. Shelves: Flanged on four sides formed to 90 degrees, front edge having a second bend.

Frame: Vertical frame member to be not less than 16 gauge formed to a channel shape and hemmed to create a smooth interior edge. Intermembering parts to be mortised and tenoned and electrically welded together in a rigid assembly capable of resisting strains. Hole spacing in locker body construction: Not exceeding 9 inches (225 mm).

Assembly Hardware: Zinc plated truss fin head bolts and hex nuts. Optional factory assembly of locker bodies using rivets.

Interior Equipment

Shelf: 16 gauge full width located approximately 12 inches (304.8 mm) below top of locker.

Hooks and Coat Rod: Two heavy duty 3 inch high, 7/8 inch wide 2-1/2 inch deep single-prong wall hooks and one chrome plated 1 inch diameter coat rod.

Fabrication

Fabricate lockers square, rigid, without warp, with metal faces flat and free of distortion.

Knocked Down Lockers: Fabricate lockers on the unit principle, each locker with individual face frame, individual top, bottom, back, and shelves, with two sides forming one complete unit.  Verify dimensions and arrangement before fabrication. Finish:  Finish coat shall be electrostatically applied powder coat enamel properly cured to paint manufacturer specifications to achieve optimum performance. All lockers shall be painted inside and outside with the same color.

Powder Coat: Dry thickness: 1 to 1.2 mils (0.025 to 0.03 mm).

Color:  As selected from manufacturer’s standard colors.

Gear Lockers – Same as above with the following substitutions and additions:

Doors: One piece 14 gauge sheet steel. Standard ventilation:  6 inch (152.4 mm) wide by 3/4 inch (19 mm) high horizontal louvers arranged two groups of six.

Optional ventilation: 3/4 inch (19mm) wide by 1-1/2 inch (38 mm) high diamond-shaped perforations or 3/4 inch (19 mm) by 1/4 inch (6.4 mm) high security mini louvers. Solid doors. Door Frames: 16 gauge formed in a channel shape with continuous vertical door strikes.

Hinges: Continuous type: 16 gauge piano hinge measuring full height of door. Welded to door and attached to locker frame using steel rivets.

Door Handles and Latching

Cremone Latching: Handle shall be a heavy duty turn handle that secures the door at three points. The top and bottom frames are engaged with 3/8 inch (9.5 mm) steel rods, and a 1/8 inch (3 mm) thick center latch engages at the side. Double door configurations shall consist of a left-hinged door secured its full length by the right hinged door when latched.

Handle assembly shall be secured to door using a threaded lock nut to facilitate adjustment and removal for repair if necessary. Welded handle assemblies shall not be accepted.

Single Point Latch: 24” wide single door only. Recessed handle with integral pull and 11 gauge steel hasp welded to locker frame.

Multiple Point Latch: 24” wide single door only. Recess finger-lift control handle in door, positive automatic type latching, whereby locker may be locked when open, then closed without unlocking.

Gear and Turnout Welded Build

Heavy Duty Lockers: All locker body components made of cold rolled steel specially formed for added strength and rigidity and to ensure tight joints at fastening points.

Locker Body: Sides, Bottoms, Tops, and Shelves: 16 gauge steel. Sides punched for shelf locations on nominal 12 inch centers.

Backs: Solid 18 gauge steel.

Groups to 48 inches (1.219 m) wide:  One piece back.

Groups over 48 inches (1.219 m) wide:  Two piece back.

Frame: 16 gauge formed in a channel shape with hemmed edge.

Sides: 16 gauge sheet steel with 3/4 inch (19mm) wide by 1-1/2 inch (38mm) high diamond-shaped perforations. Optional:  solid sides without ventilation. Tops: Notched and formed sheet; one continuous flat top for each group of lockers.

Channel Base: Notched and formed sheet; one continuous bottom for each group of lockers, suitable for anchoring to wood or concrete bases. Adds 4 inches to the overall height of locker. Shelves: Flanged four sides with additional return flange on front edge to increase strength.

Interior Equipment

Shelf:  16 gauge full width, located approximately 12 inches (304.8 mm) below top of locker.

Hooks and Coat Rod: Two heavy duty 3” high, 7/8” wide 2-1/2 inch deep single-prong wall hooks and one heavy duty chrome plated 1 inch diameter coat rod.

Fabrication

Fabricate lockers square, rigid, without warp, with metal faces flat and free of distortion.

Finish: Finish coat shall be electrostatically applied powder coat enamel properly cured to paint manufacturer specifications to achieve optimum performance. All lockers shall be painted inside and outside with the same color.

Powder Coat: Dry thickness of 1 to 1.2 mils (0.025 to 0.03 mm).

Color: As selected from manufacturer’s standard colors.

Gear Lockers – Same as above with the following substitutions and additions:

Doors: One piece 14 gauge sheet steel. Standard ventilation: 6 inch (152.4 mm) wide by 3/4 inch (19 mm) high horizontal louvers arranged in two groups of six.

Optional ventilation: 3/4 inch (19mm) wide by 1-1/2 inch (38 mm) high diamond-shaped perforations or 3/4 inch (19 mm) wide by 1/4 inch (6.4 mm) high security mini louvers. Solid doors. Door Frames: 16 gauge formed in a channel shape with continuous vertical door strikes.

Hinges: Continuous type:  16 gauge piano hinge measuring full height of door. Welded to door and attached to locker frame using steel rivets.

Door Handles and Latching

Cremone Latching: Handle shall be a heavy duty turn handle that secures the door at three points. The top and bottom frames are engaged with 3/8 inch (9.5 mm) steel rods, and a 1/8 inch (3 mm) thick center latch engages at the side. Double door configurations shall consist of a left hinged door secured its full length by the right hinged door when latched.

Handle Assembly shall be secured to door using a threaded lock nut to facilitate adjustment and removal for repair if necessary. Welded handle assemblies shall not be accepted.

Single Point Latch: 24 inch wide single door only. Recessed handle with integral pull and 11 gauge steel hasp welded to locker frame.

Multiple Point Latch: 24 inch wide single door only. Recess finger-lift control handle in door, positive automatic type latching, whereby locker may be locked when open, then closed without unlocking.

Color NumberColor NameColor
054Canvas
021Gray Ash
028Gray
073Champagne
723Light Putty
012Tawny Tan
701Spray Green
952Turquoise Teal
055Shamrock
812Hunter Green
715Lake Blue
823Slate Blue
806Marine Blue
052Reflex Blue
822Regal Blue
058Nordic Purple
056Sunburst
710Sagebrush Yellow
720Mandarin Orange
722Patriot Red
767Cardinal Red
736Burgundy
848January White
949Jet Black

NOTE: Colors shown are as close to actual finishes as the printing process allows. Do not make your final color selection based on the color shade shown on this page. Penco Color Charts are available for a more accurate color match. Exposure to high humidity, chlorine salts, abrasive cleaners, germicidal cleaners and acids can damage the finish and will void the guarantee. For outdoor applications or other harsh environmental conditions, contact your Penco Representative.
